How To Set Cleats On Cycling Shoes

Last update: 2021-11-23

This is the final guidance for the development of new cleats, such as Shimano, Speedplay and others, for road bike shoes. When you are riding, nothing is more crucial than your feet. It might sound like a big boast, but in each one ride you create hundreds of thousands of pedal hits. And how are you doing this? Naturally, with your feet.

We could declare with fullest confidence that cleats on cycling shoes may affect the feet, the ankles, the knees, the hips, the lower back, the all within. Fitters with expert knowledge will say it's not the end of the list, and we agree, but that you must make a note.

1. How To Set Up Your Cleat For Cycling Shoes

How To Set Cleats On Cycling Shoes

The location of the cleats such that the center of the pedal axle matches the ball of your foot is widely considered as biomechanically best for cycling efficiency and power transfer.

To ensure that this is the case, perform these quick tips with your shoe and pedal combination.

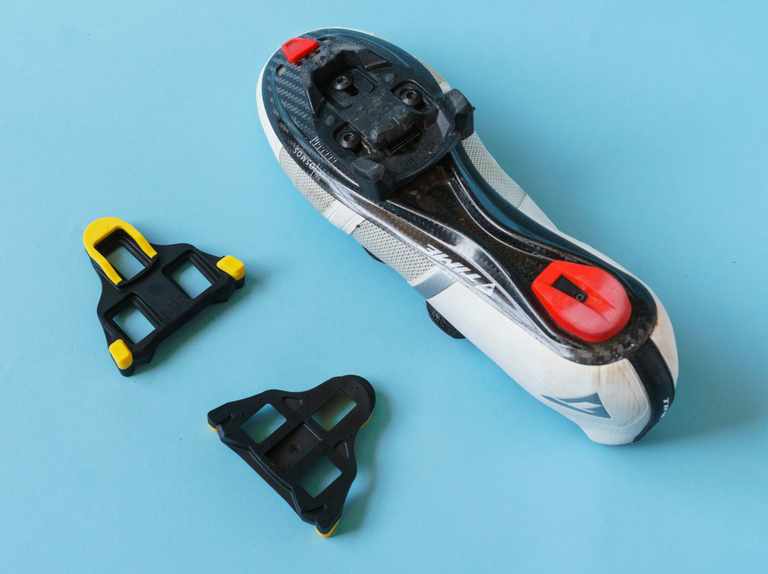

Start with cleat removed from the cycling shoe

How To Set Cleats On Cycling Shoes

Maybe it is also a chance at this time to consider fitting some new cleats on cycling shoes since they are quite easy to replace and worn.

Put your shoes on and locate the ball

Ensure that you wear your usual socks for riding. Put in and tighten your footwear as usual. Feel right down the inside border of your foot by squeezing with your thumb or finger. This should be simple to find, since it's the knee joint at the base of the big toe extending sideways.

Mark the size of your foot

How To Set Cleats On Cycling Shoes

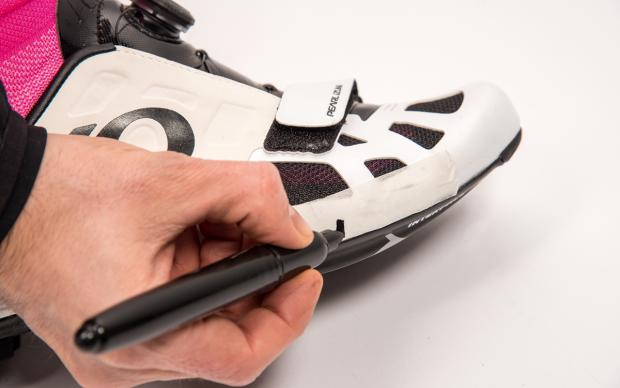

Mark the shoe side as exactly as feasible at the center of the ball. Get someone to assist you discover it. Do for the other foot all this.

Mark a line along the sole

How To Set Cleats On Cycling Shoes

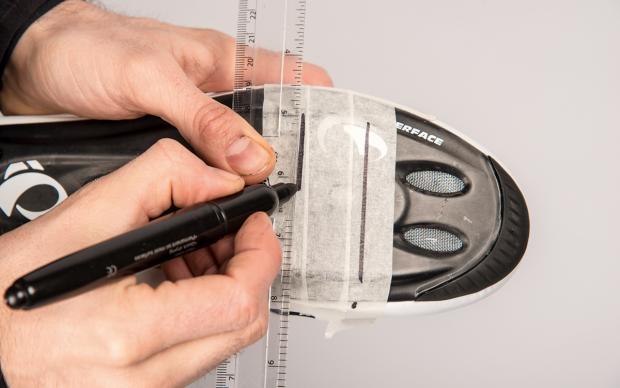

First take the shoes off then place them on a level surface, flat. Hold a straight edge against the check on the shoe, and transfer the line straight down to the same point on the sole. Turn the shoe over and make beyond any doubt that your check is unmistakable on the sole.

Line the ink up with the stamp on the edge of the cleats

How To Set Cleats On Cycling Shoes

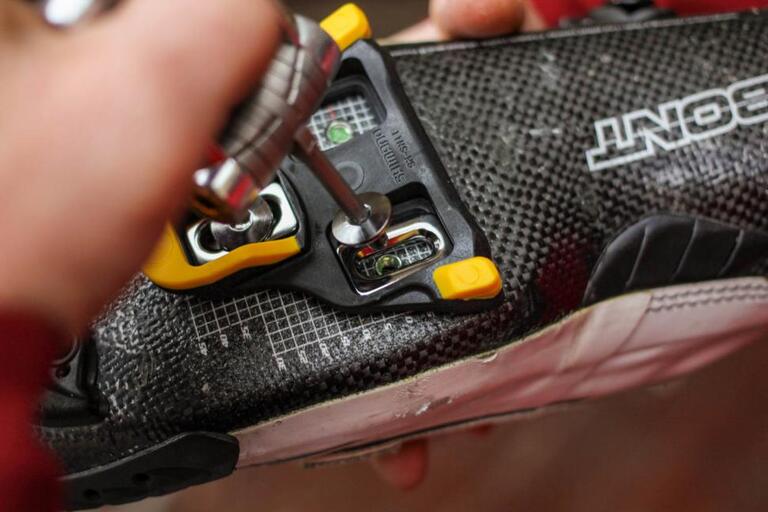

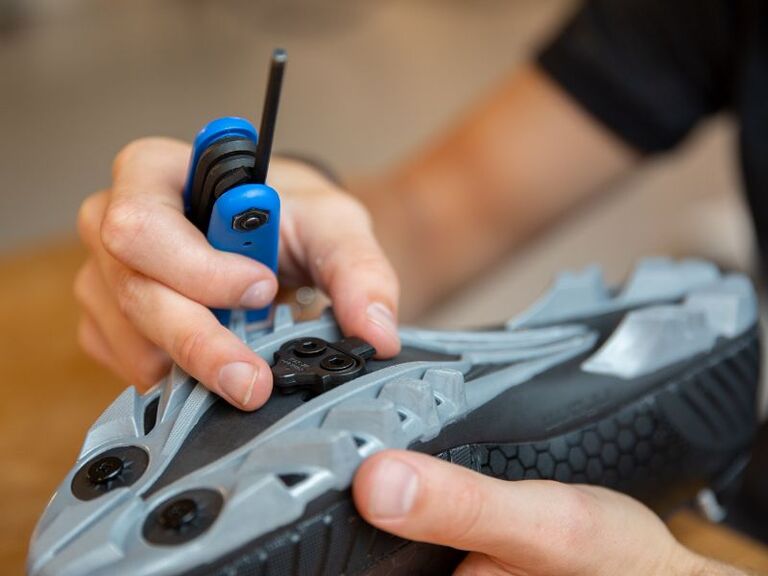

Fit cleat, freely, adjusting your check with the point on the cleat where the middle of the pedal pivot will be, once you're clipped in. Most cleats on cycling shoes give a marker on the side, by way of an indent or line to demonstrate the middle of the pedal pivot, so it is fair a case of lining up your check with theirs.

Setting Up The Fore And AFT

Move the cleat side-to-side to impact how near the foot sits to the center-line of the bicycle. In case you ride along with your knees wide at the beat of the pedal stroke, move your cleats on cycling shoes inwards to move the foot outwards. In case you ride with the knees limited at the best of the stroke, move the cleats towards the exterior of the shoe and the foot inwards.

2. Set Up Cleat In More Detail

The advice of most bike fitters when putting up cleats on cycling shoes is to just put the center of the pitch underneath the foot ball. This matches well to where skilled bikers like to put their feet when driving on smooth pedals; it implies that plantarflexion can add to a circular pedalling movement that gives power across most of the pendal circle, or pressing back the forefoot during the downstroke.

However, it does not assure that this really happens. In many situations there is indication that it is not at all and any helpful plantarflexion is more imaginary than actual; the knee remains nearly stationary and the bottom leg muscles function principally.

If the lower leg muscles do nothing except stabilize the ankle, you might wonder why it should function.

The foot can't add anything to the pedaling movement - but it didn't appear to hamper Jacques Anquetil, who was first five times winner of the Tour de France and was renowned for his locked-knee pedals in a characteristic toe-down manner. Indeed, the knee is seldom held completely stiff and in most cyclists you detect a slump, even though it may not be the most productive kind.

The tendency for the heel to fall on the downhill is far more frequent in a motion exactly the reverse of the passion of early cycling authors. The extreme plantarflecture of the original ankling method may thus be a fallacy and not even desired, while heel drop among grave cycle riders is frequent.

Why heel drop happens shifts: a few individuals may basically discover accelerating feels ‘easier, since dropping the heel through the downstroke diminishes the sensation of resistance within the pedals; others actually may not be able to produce the lower leg muscle drive required for foot plantarflexion and thus unwittingly drop their heel as they thrust against the pedals. A third reason is saddle stature; as well as moo, and the rider may drop the heel in an endeavor to discover a more productive leg expansion.

The fundamental issue within the center case is the work required of the calf muscles. Think of the foot as a lever with the lower leg as the support and the heel and ball of the foot as the contradicting lever arm closes. The calf muscles drag on the heel through the Achilles ligament to thrust down the forefoot. The assist absent from the lower leg is the point of application of descending constrain by the ball of the foot, the harder the calf muscles must drag on the Achilles ligament.

3. Why do we set up cleats on the ball ?

The location of the cleats on cycling shoes near the front of the sole enhances the efficient length of the forefoot lever arm, and puts difficult things on the calf's muscles.

The technique to deal with this is really easy: relocate the cleats down the shoe bottom and lower the forefoot lever arm length. That does not have to go as far as the advocates of the cleats on cycling shoes placement of 'tarsometatarsal' propose, which puts it near the foot arch.

This is, of course, the foot posture of inexperienced bikers pedaling flat pedals; the lower leg performs little or no effort with the ball of the foot on the pedal and causes cycling to feel less strenuous. The difficulty with this kind of pedaling movement is obvious: the foot cannot help generate power or the flexibility of the pedal stroke.

The answer is to select a position in the area of the ball of your feet for the cleats on cycling shoes, so that they can do the correct task.

Variations in foot ratio need to be adjusted if the clasp is to be put squarely beneath the football, but that is only part of the tale. Depending on the differing strengths of their calves, two riders with similarly shaped feet might prefer different cleat sites.

4. Two Bolt Cycling Cleats

How To Set Cleats On Cycling Shoes

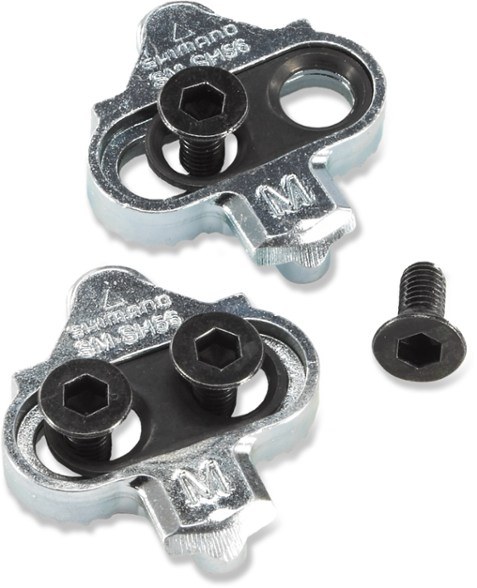

Road shoes tend to have a stricter restriction than MTB shoes, so if you desire to shift cleats more out than it will permit you to, you have the option of moving to MTB or comparable SPD style two-bolt shoes.

Most folks won't notice the need to reverse or forward their cleats from their present posture. Nevertheless, your cleat placement may be checked and not simply because of a painful Achilles tendon or calf .

Playing a bit along with them may assist fix an ineffective pedaling movement produced by sinking the heel down and can even enable you to create really helpful ankling and to increase your power.


Indeed in spite of the fact that the field was part, one imperative issue was highlighted! We are able to conclude merely ought to not fair whack the cleats in and disregard around them. Donate a position advances and in reverse from the center position an attempt and see what works best for you, completely back may shake your world, or maybe you lean toward the center ground. Be beyond any doubt that a modern pedal position can take a while getting utilized to, so deliver your muscles time to adjust.
